3/4 Axles Drop Deck Semi Trailer , Heavy Duty Semi Trailers For Truck

Product Categories

Star Trailer Co.,Ltd

Contact Now

Name: 34 Axles Drop Deck Semi Trailer Heavy Duty Semi Trailers For Truck
Brand: Stsr trailer
Price: 1 USD

Brand Name : Stsr trailer

Certification : CCC ISO

Place of Origin : Shandong China

MOQ : 1unit

Payment Terms : L/C, T/T

Delivery Time : 40 days after down payment received

Packaging Details : nude

Price : Negotiable

Model Number : SW-010

Contact Now

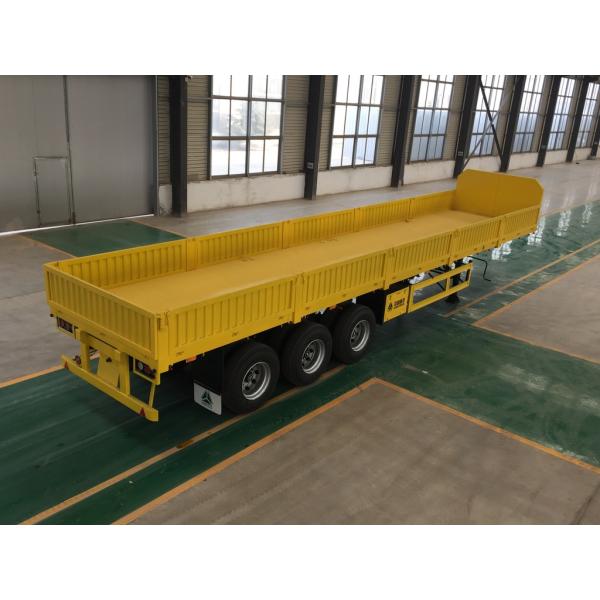

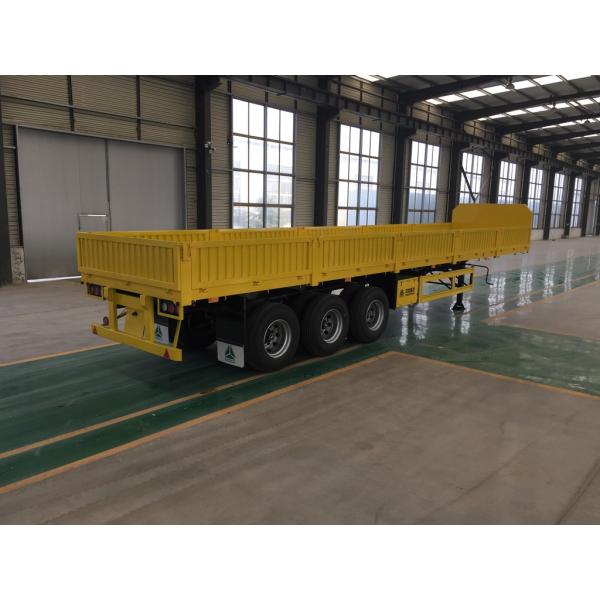

3/4 Axles Drop Deck Semi Trailer , Heavy Duty Semi Trailers For Truck

Overview

Quick Details

Use:Truck Trailer Type:Semi-Trailer Material:Steel

Certification:ISO CCC Size:13000*2550*600 OEM No.:

Max Payload:40 Tons Place of Origin:Shandong, China (Mainland)

Brand Name:Star Trailer Product Name:Sidewall Open Semi Trailer

Axle:13 Ton Fuwa Brand Function:Cargo Transportation

Axle Number:3 Axle Loading Capacity:40 Tons

Color:Option Tire:Option

Suspension:Leaf Spring Suspension

Supply Ability

Supply Ability:3000 Unit/Units per Year

Packaging & Delivery

Packaging Details:Standard Package

Port:Any port in China

Lead Time :

Quantity(Units)	1 - 10	>10
Est. Time(day)	25	To be negotiated

Specification:

Contract No.:
Type:		12.55M 4 Axle Drop Side Trailer
Model:		WL840
Dimension:
	Overall Length:	12,550mm
	Overall Width:	2,580mm
	Overall Height:	2,950mm
	Axle space:	6,515mm+1,310mm+1,310mm+1,310mm

Weight:
	Payload:	80,000kg
	Tare weight:	Approx. 9,900kg
	G.V.W.R.:	Approx. 89,900kg

Frame & Structure:
	Main beam:	500×140mm,Top flange 16mm,web 8mm,lower flange 20mm,Q345B.
	Kingpin:	2” Kingpin, Welded in type
	Twist lock:	12 sets twist locks
	Drop side:	1000mm
	Landing gear:	Telescopic manual leg JOST E100
	Painting:	Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 120μm

Running gear:
	Suspension:	Leaf spring(8pcs)
	Axle:	BPW 13 ton capacity 4Pcs
	Tire:	12.00R22.5 18 Pcs(2 pcs of spare tire)
	Rim:	9.0×22.5 18Pcs(2 pcs of spare tire)
Brake System:
	Brake control valve:	Sealco Relay emergency valve
	Coupler:	Gladhand coupler
	Brake chamber	T30,(T30/30) spring brake chamber
Electrical System:
	Voltage:	24 Volt
	Receptacle:	7 way socket SAE standard
	Front marker lamp:	White
	Side marker lamp:	White & Red
	Rear lamp:	Red
	Turn signal lamp:	Amber

Accessories:
	Mud guard:	Steel mud guard
	Spare wheel carriers:	1 pcs
	Tool box:	1 pcs

Other items:
1
2
3
Note: All the details not mentioned above should comply with Chinese regulations. If any component or structure changed, the price shall be modified accordingly.
